Hydraulic Single Head Crimping Machine

Brand :Parker

Product origin :China

Delivery time :within 20 working days

Supply capacity :100 sets per month

1.Used for connection of 90°angle structure of aluminium doors and windows.
2.Synchronously feeding structure makes the adjustment simple and easy.
3.The blades can be adjusted up and down relatively by the threads.

Window Door Single Head Crimping Machine

Product description

Parker aluminum window corner crimping machine with best price
LJJ-120 hydraulic corner crimping machine adopts new mechanical link structure to make corner assembling synchronously. Left and right punching heads feed synchronously to avoid deformation to make window corner connection more solid. Synchronous feeding structure makes the adjustment simple and easy. The blades can be adjusted up and down relatively by the threads. This single head crimping machine or hydraulic corner crimping machine can be equipped with single blade or multipoint blades, making more reliable corner forming, more efficient work, more precise manufacturing and more excellent quality.


Features

1. This single head crimping machine realizes stable corner combining due to hydraulic power drive.
2. Hydraulic corner crimping machine features less processing error, easier operation and better processing quality.
3. Screw adjusts combining tool's distance, making the tool setting convenient.
4. Single head crimping machine can be equipped with multi-position combining tool available to process thermal bridge aluminum.


Parameters

Voltage380V 50HZ
Power2.2KW
Air pressure0.5-0.8MPa
Oil tank capacity20L
Hydraulic System Pressure15 Mpa
Max. width of profile120mm
Overall dimension
1000 mm × 1200 mm × 1200 mm

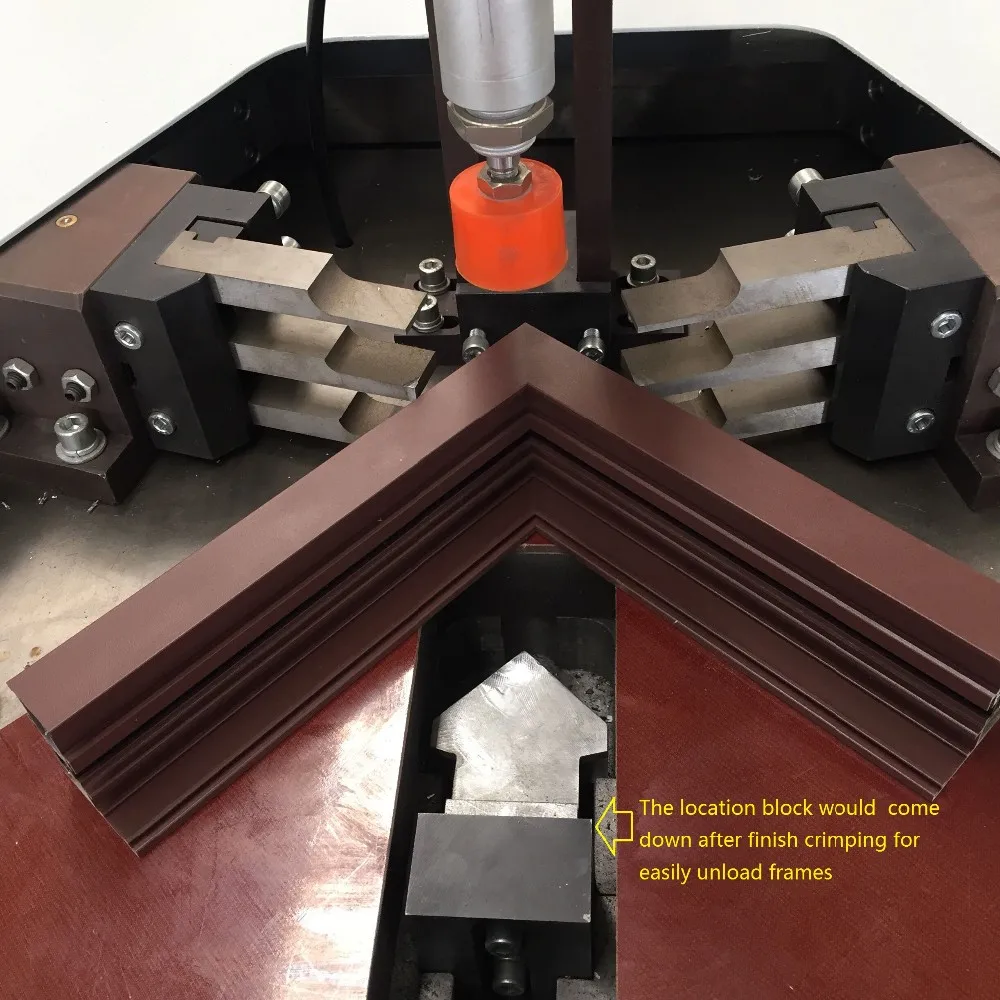

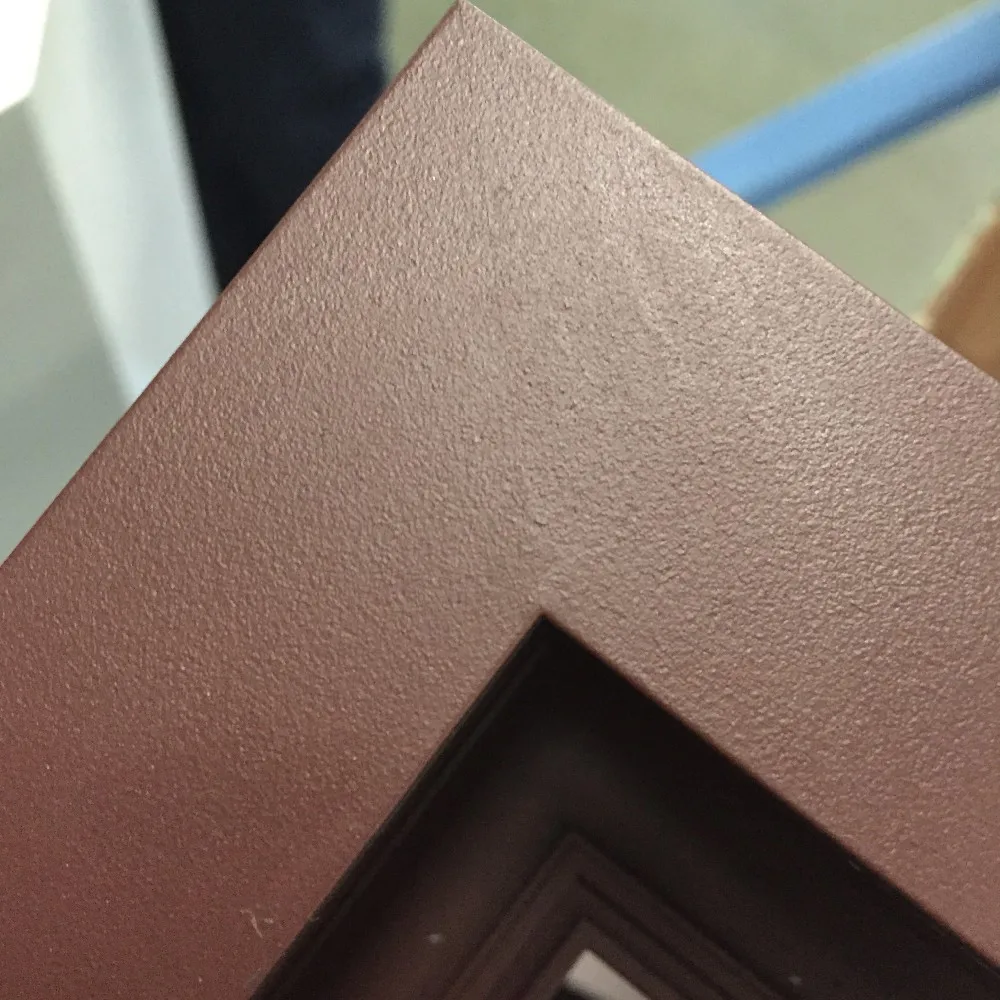

Detail pictures


Factory
